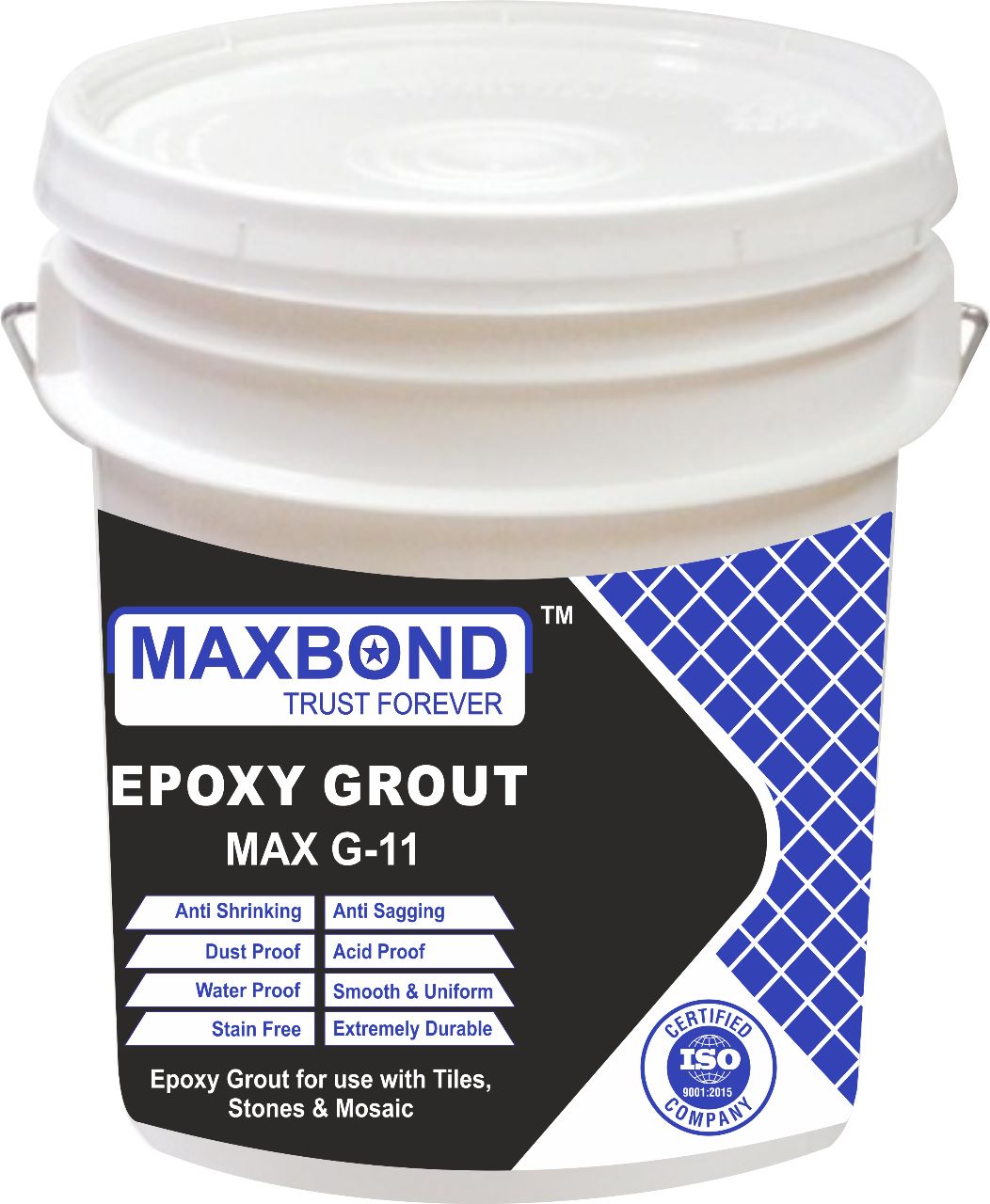

Epoxy Grout MAX G-11



Epoxy Grout is high chemical & stain resistance product. It is a set of three component namely Resin, Hardener & Coated filler. It is anti shrinking, anti sagging, dust proof, acid proof & water proof product. It can be used to fill gaps between 2 to 12 mm.

There are two types of Epoxy Grout

 1. Epoxy Grout (Non Sparkle)

 2. Epoxy Grout (Sparkle)

Application:- It is suitable to fill gaps between 2 mm to 12 mm in all tiles, stones, mosaic tiles, vinyl tiles, wood tiles etc on interior floor/wall & exterior floor/wall dry & wet areas. Surface levelling is not required before application & area needs to be clean for proper bonding between mating parts.

Substrate:-

 1. Cement Plaster

 2. Cement Mortar Beds

 3. Concrete

 4. Concrete Masonry

 5. Brick Masonry

 6. Steel, Aluminum, Copper surface

 7. Vinyl tiles

 8. Plywood & Wood surface

 9. Glass surface

 10. Gypsum board

 11. Fill gaps in ceramic, vitrified, mosaic tiles, stones etc.

Features & Benefits

 1. Good inter-bond adhesion

 2. High peel strength

 3. Improved flexibility

 4. Superior corrosion resistance

 5. Excellent wetting characteristics

 6. High filler loading

 7. Crack filling & Repair

 8. Superior Gloss

Epoxy Grout coverage (gram/foot2)

Tile Size (Inches) Joint Width (mm)
2 3 4 5 6
8x12  26 39 52 64 76
8x24  21 31 42 52 62
8x48  18 28 37 46 54
12x12 21  31 42 52 62
12x18 18   26 35 43 52
12x24 16  24 31 39 47
16x16 16  24 31 39 47
24x24 11 16  21   26 31
24x48 8 12 16  20 24

Note:-

 1. Tile thickness is considered 10 mm while calculating coverage.

 2. Actual coverage might be different depends on tile size, tile thickness, gap in tiles, application area surface variations etc.


Product Details

 Packaging:-1 kg Bucket/5 kg Bucket/10 kg Box

 Colour:- 20 Colours & Customize

 Coverage:- (Tile Length+Tile Width) x Tile Thickness X Joint Width X Specific Gravity

                ______________________________________________

                                     (Tile Length+Joint Width) x (Tile Width+Joint Width)

Note:-

1) Where all dimensions are in mm

2) Where specific gravity is 1.75

3) Where result will be observed in kg/mtr2

 Shelf Life:-

 Best before 12 months from date of manufacturing in unopened condition & store in dry place

Application Method:-

 1. Clean the surface to avoid dirt, oil, grease, dust or any other loose particles

 2. Mix Resin & Hardener with ratio of 2.5 times resin than hardener. After proper mixing, add filler in the mixture

     to make consistent paste with the help of drill machine with suitable arrangement for uniform paste formation

     (Filler quantity can be variable as per paste application on floor or wall)

 3 . Do not add more resin/hardener in paste to increase pot life.

 4. Use masking tap at tiles edge to avoid cleaning process of tiles after epoxy application

 5. Use flat side of trowel to fill paste in gap between tiles

 6. Use wet scrub/cotton clothe in clockwise & anticlockwise motion to clean tiles immediately after epoxy

     application & to make epoxy surface smooth & shiny

 7. Do not use epoxy filling area before 24 hrs.
